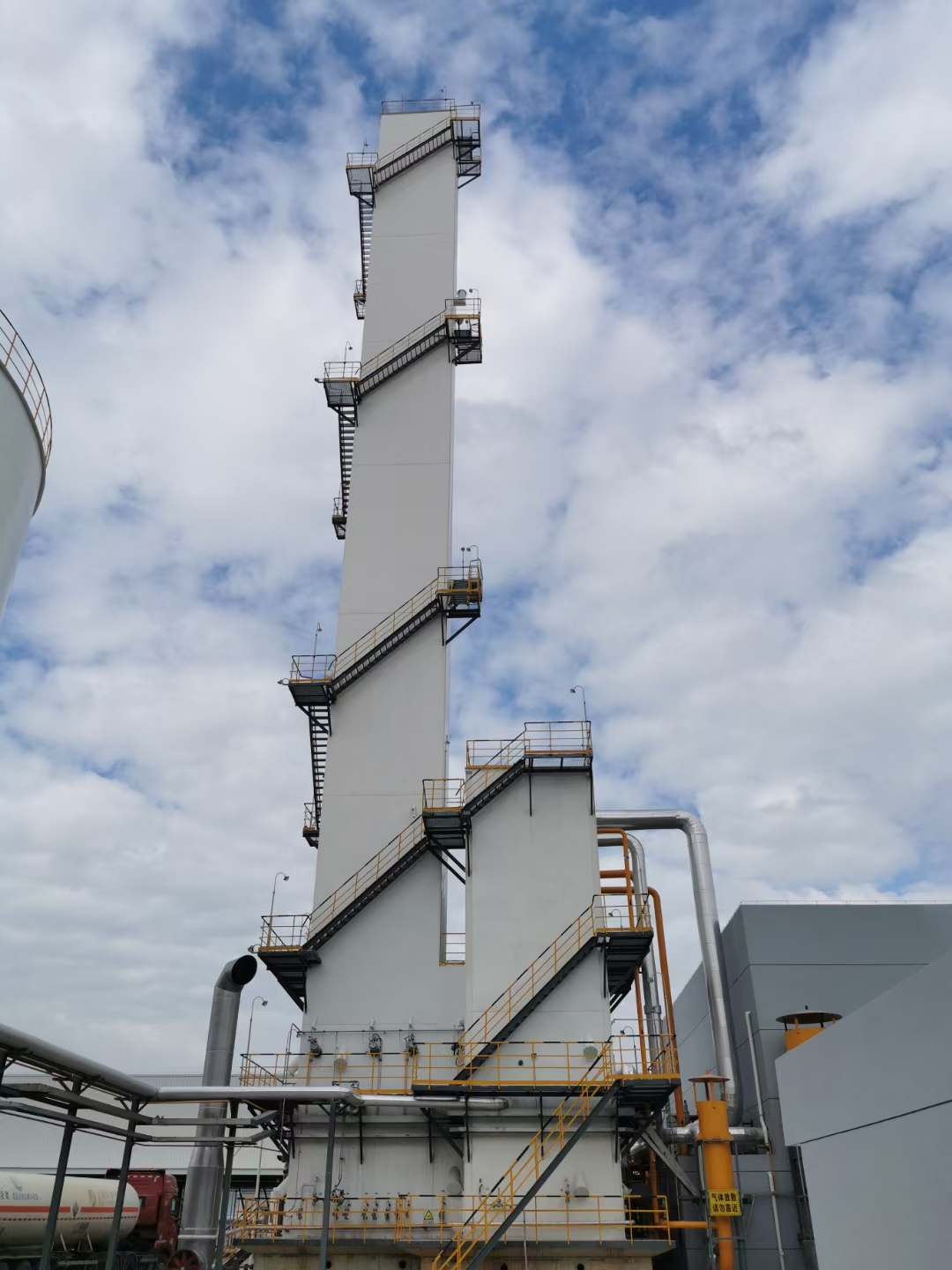

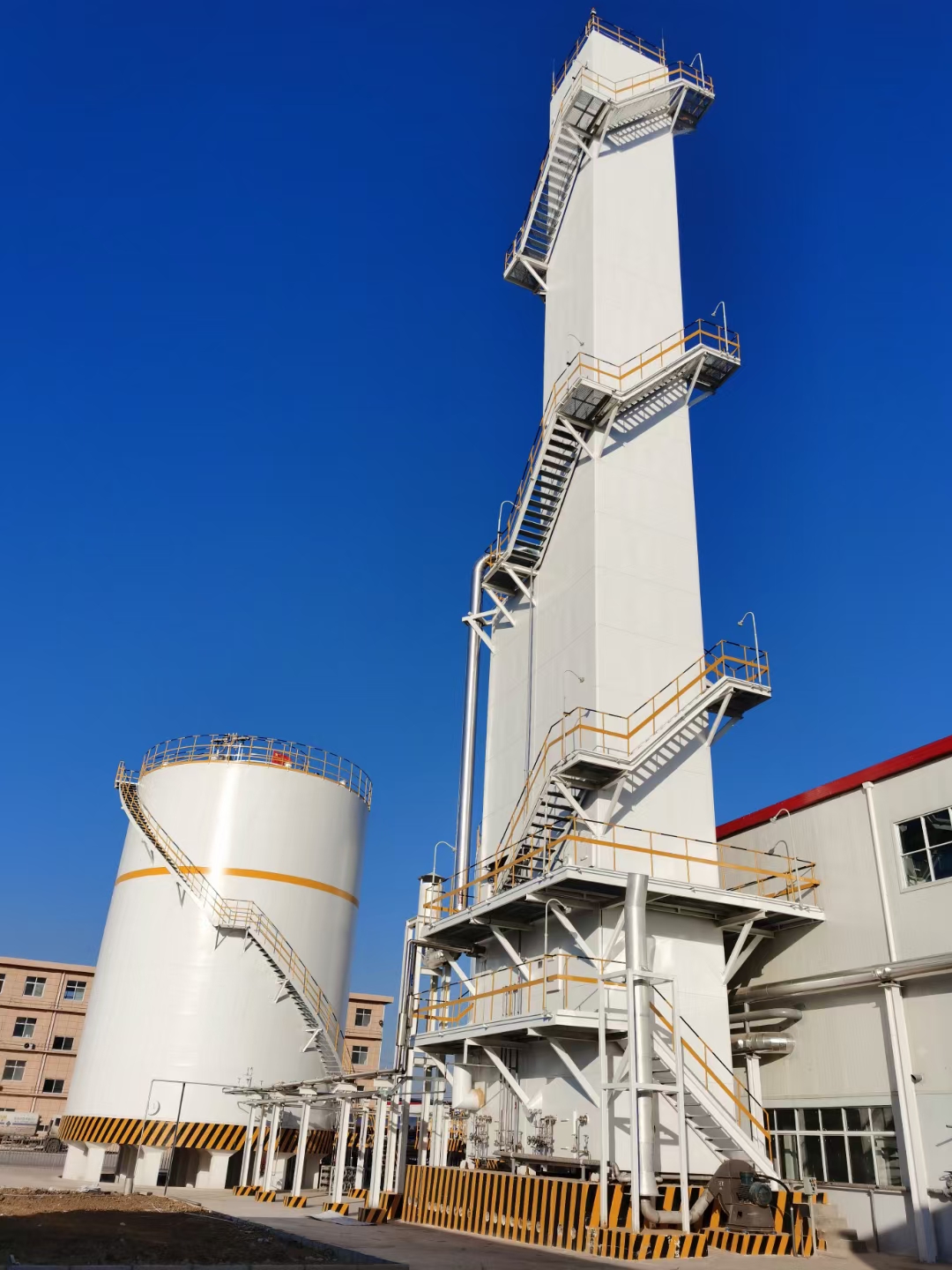

Product characteristic for liquid oxygen and nitrogen plant
① Cryogenic technology for liquid oxygen and/or liquid nitrogen with booster-turbine expander.
② The system process is designed with low power consumption.
③ Modular design(skid-mounted type) is adopted to ease shipment and on-site erection and installation period.
④ Remote commissioning and monitoring and automated process control.
⑤ Each plant is designed and manufactured with highest standard of reliability and efficiency.
⑥ Different capacity, purity and product pressure can be customized to meet with client need.
Product technical parameter
Model | Liquid Oxygen Capacity (Nm3/h) | LOX Purity | LOX pressure (MPaA) | Liquid Nitrogen Capacity (Nm3/h) | LIN Purity | LIN pressure (MPaA) | Argon Capacity Purity |
KDO-50Y | 50 | ≥99.6% O2 | 0.3 | - | ≤9ppm O2 | - | - |
KDON-150Y/（150Y） | 150Y（5TPD） | ≥99.6% O2 | 0.2 | (150Y) | ≤9ppm O2 | 0.6 | - |
KDON-300Y/（300Y） | 300Y（10TPD） | ≥99.6% O2 | 0.25 | (300Y) | ≤5ppm O2 | 0.6 | - |
KDON-615Y/（650Y） | 615Y（21TPD） | ≥99.6% O2 | 0.27 | (650Y) | ≤3ppm O2 | 0.6 | - |
KDON-875Y/（1000Y） | 875Y（30TPD） | ≥99.6% O2 | 0.28 | (1000Y) | ≤2ppm O2 | 0.6 | - |
KDON-1000Y/（1000Y） | 1000Y（34TPD） | ≥99.6% O2 | 0.28 | (1000Y) | ≤2ppm O2 | 0.6 | - |
KZON-1000Y/1000Y | 1000Y（34TPD） | ≥99.6% O2 | 0.13 | 1000Y(30TPD) | ≤2ppm O2 | 0.4 | - |
KZONAr-1500Y/500Y/45Y | 1500Y（51.4TPD） | ≥99.6% O2 | 0.13 | 500Y(15TPD) | ≤2ppm O2 | 0.4 | 45Y(99.999%) |
KZONAr-2000Y/1000Y/60Y | 2000Y（68.6TPD） | ≥99.6% O2 | 0.13 | 1000Y(30TPD) | ≤5ppm O2 | 0.4 | 60Y(99.999%) |
KZONAr-2600Y/400Y/80Y | 2600Y（89TPD） | ≥99.6% O2 | 0.13 | 400Y(12TPD) | ≤2ppm O2 | 0.4 | 80Y(99.999%) |
KZONAr-4000Y/1000Y/120Y | 4000Y（137TPD） | ≥99.6% O2 | 0.13 | 1000Y(30TPD) | ≤2ppm O2 | 0.4 | 120Y(99.999%) |
KZONAr-5000Y/8000Y/150Y | 5000Y（171TPD） | ≥99.6% O2 | 0.13 | 8000Y(240TPD) | ≤5ppm O2 | 0.4 | 150Y(99.999%) |
KZONAr-6000Y/3000Y/180Y | 6000Y（206TPD） | ≥99.6% O2 | 0.13 | 3000Y(90TPD) | ≤5ppm O2 | 0.4 | 180Y(99.999%) |
